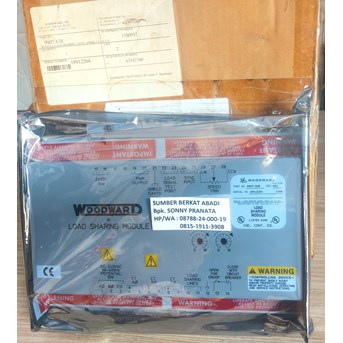

WOODWARD 9907838 9907 838 9907-838 LOAD SHARING MODULE 9907-175 9907175 9907 175 - GENUINE


Brand = WOODWARD
Part Number = 9907-838 (NEW Part Number) : 9907-175 (OLD Part Number)
Description = Load Sharing Module

WOODWARD - GENUINE PRODUCT 100%

Load Sharing Module, Pulse Width Modulated Output, Power Supply 24 VDC, Caterpillar PWM Output Surge Protection Features: Load Sharing Module is made for use with Caterpillar engines equipped with a Caterpillar digital speed control with a pulse width modulated (PWM) input. The Load Sharing Module allows use of Woodward power generation accessories and allows load sharing between the Caterpillar digital speed control equipped engines and engines controlled with Woodward electronic controls. Isochronous and droop load sharing Easy to setup EC Compliant UL/cUL Listed

Power Supply DC Models 1832 Vdc, approximately 5 W. AC Models Jumper selectable for 95130 or 190260 Vac line-to-line, 50400 Hz, approximately 10 W. Inputs 3-phase PT Inputs 95130 or 190260 Vac line-to-line, 50400 Hz. PT input burden is 1.6 W per phase at 240 Vac, 0.4 W per phase at 120 Vac. 3-phase CT Inputs 37 Arms at full load, CT input burden at full load is 0.1 VA per phase. Load Sharing Input 03 Vdc into 25 k impedance in isochronous mode, open circuit in droop mode. Sync Input Compatible with optional Woodward SPM-A synchronizer. Speed Trim Allows manual adjustment of output level with an external 10 k potentiometer (not available on part number 9907-173). Droop Switch The external droop switch is to be wired in series with the auxiliary circuit breaker contact. Droop mode is selected when either the droop switch or the auxiliary circuit breaker is open. Outputs Load Signal DC signal proportional to total real current sensed by the Load Sharing Module. IP43 protective enclosure required for compliance with EU Low Voltage Directive. Physical Characteristics Dimensions Length: 273.6 mm (10.77 in.) Width: 214.1 mm (8.43 in.) Height: 59.2 mm (2.33 in.) Weight/Mass 1398 g (49.3 oz.) approximate, dc models 1488 g (52.5 oz.) approximate, dc models
